Slot Drain Pipe

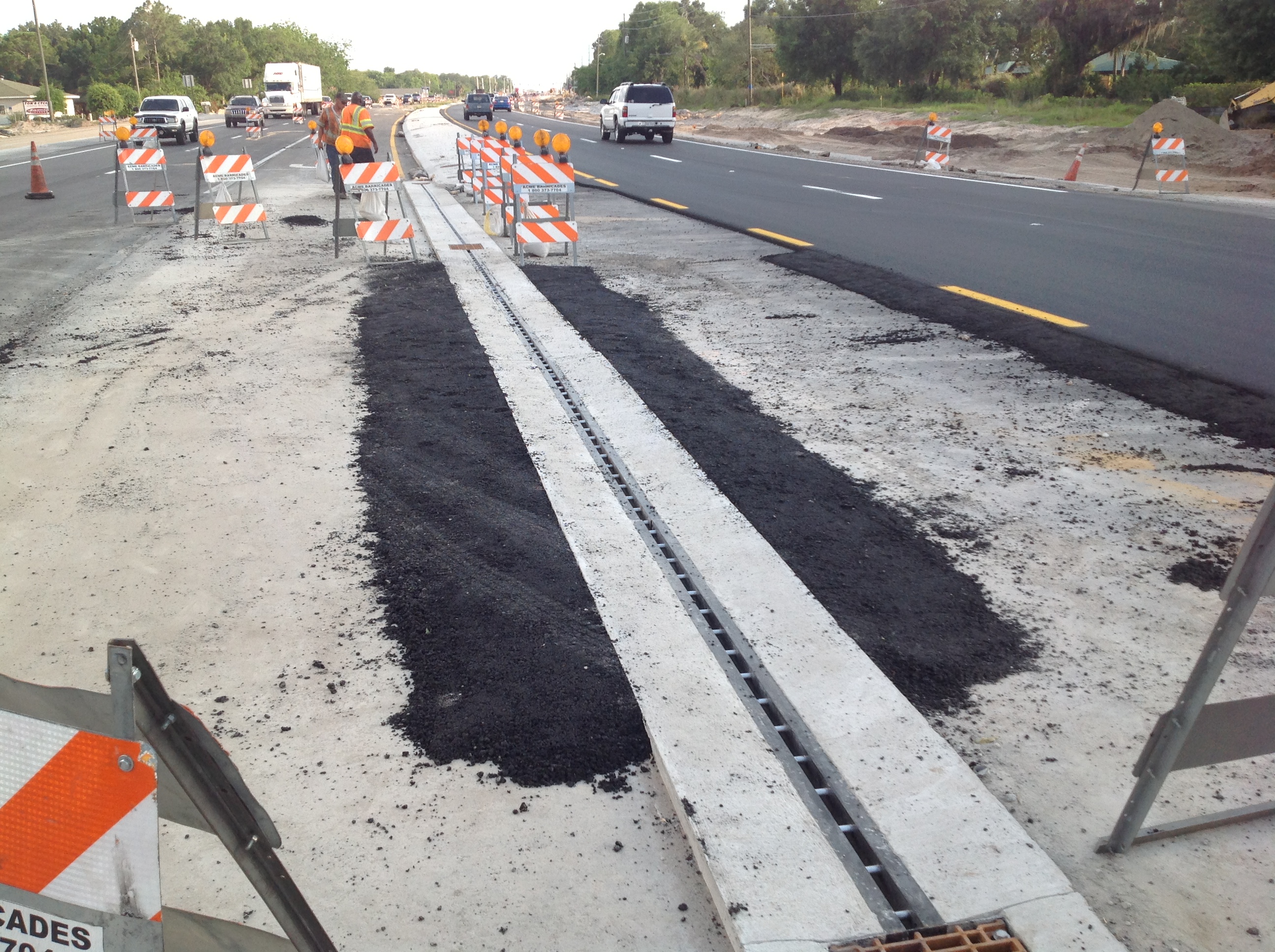

Slotted Drain Pipe is a practical, aesthetically pleasing drainage inlet product for the efficient removal of surface water and sheet flow on streets and highways. It also is widely used in parking lots and similar locations to remove sheet flow without complex multiple grades, catch basins, or water channeling devices. Slot Drain (metal) Foster Supply provides all sizes of slotted drain products. These include 2 1/2', 6', and 8 1/2' tall slotted drains combined with whatever size pipe the job requires.
Slotted Drain is a unique pipe which removes sheet flow without multiple grades or water channeling devices. The pipe is cut along a longitudinal axis, and a trapezoidal or straight-sided grate with reinforcing spacer plates is welded to form a 1 3/4 -inch-wide slot opening.
Each Slot Drain system includes a specially designed cleaning kit specific to its application.
Slot Drain does not absorb water or contaminates and allows any solids to be disposed of in an environmentally friendly manner. The only part of Slot Drain that is exposed is the stainless steel surface which can be cleaned and sanitized in the same manner as your floor surface. Watch how easy it is to clean a Slot Drain System.
Slot Drain has been installed successfully in hundreds of applications, satisfying customers and construction professionals alike.
Slot Drain is designed for numerous market sectors. Slot Drain is made to suit your special requirements. Slot Drain provides drainage solutions that are durable, sanitary, aesthetically appealing, easy to clean, load class rated, corrosion and temperature resistant, ADA Compliant and odour eliminating.
FOOD + BEVERAGE PROCESSING
BREWERIES
Landscape Architecture
POOL & PATIO
AUTOMOTIVE
AGRICULTURE + ANIMAL
RESIDENTIAL
Before Slot Drain, grating, trench drains and four-sloped floors were the standards.
Slot Drain changed surface drainage forever by providing the first pre-sloped, prefabricated drain system. The linear slot eliminates traditional grates that can be weak, trap bacteria and are difficult to clean. Slot Drain is applicable wherever floor or ground surfaces are subject to fluids, or have frequent cleaning requirements.
Scope
This specification describes 4- through 36-inch (100 to 900 mm) ADS DURASLOT pipe for use in surface drain applications.
Ads Slot Drain Pipe
Pipe Requirements
DURASLOT pipe, as manufactured and distributed by ADS, Inc., shall have a smooth interior and annular exterior corrugations with an aluminum slot grate frame mounted longitudinally along the length of the pipe to accept the grate while maintaining the original pipe diameter..
- 4- through 10-inch (100 to 250mm) pipe shall meet AASHTO M252, Type S.
- 12- through 36-inch (300 to 900 mm) pipe shall meet AASHTO M294, Type S or ASTM F2306.
- Manning’s “n” value for use in design shall be 0.012.
The aluminum slot grate frame shall be manufactured from 0.063” tempered commercial aluminum meeting the requirements of ASTM B209, consisting of two parallel plates separated by spacers spanning the slot on 6” centers. The grate shall be ½ - #13 galvanized steel. The grate shall have a diamond-shaped opening and be ADA compliant. The flange at the bottom of the aluminum slot grate frame shall be riveted to the pipe with a minimum of two rivets per linear foot.
Fittings
DURASLOT fittings shall be modified from fittings which conform to AASHTO M252, AASHTO M294, or ASTM F2306.
Slot Drain Pipe
Installation
Installation shall be in accordance with ADS recommended installation instructions. Contact your local ADS representative or visit www.ads-pipe.com for a copy of the latest installation guidelines.
